Bending of the conveyer screw shaft is done in several ways. But that we often use 2 methods Is bending by mechanical method (using a hydraulic jack) or bending by heat method (welding or using a gas nozzle).

Single shaft Dia. 0.45 m, length 9 m. Ashes conveying under the boiler Use water to cool the central shaft.

This can be determined by selecting either hand that can be extended with the thumb parallel to the axis of the screw conveyer. And can hold all four fingers around the axis of the screw conveyer In the same direction as the flight around the axis of the screw conveyer. If it's the left hand, it's called the left hand, or if it's the right hand,

The construction of a screw conveyor using the blade pitch at the entrance short pitch than the general pitch (conveying pitch) is another way to prevent knocking of the screw conveyors. Due to the compression of the material during the conveying after the material compresses at the inlet, when it reaches the conveying range, the pitch is wider. The material will break down, not compact, making it easy to flow. To calculate the loading rate of this type of screw conveyor, the inlet pitch is used to calculate, in other words, the inlet conveyor screw blade pitch determines the material handling rate.

Box or work pieces can accumulation on the conveyor.

Use in packing line.

Use to control feed of lime to the pneumatic conveyor.

The device, in conjunction with a rotary airlock, receives material released from silos for feeding to pneumatic conveyor.

Used to mix syrups in sugar factories.

Overhaul work are possible for our product.

Model: D250mm x L 17.4 m. Used in soy mill.

Happy New Year 2021

For the long distant conveying, Belt conveyor is one kind of low cost equipment.

W=2.0 m., L = 2.0 m. Operate in paper industry.

Model: D250mm x L 13 m. Used in soy mill.

As show is drive by belt. Use in paper manufacturer.

This rotary airlock is design to control flow of lime in production plant.

This rotary valve is design to control flow of tapioca in feeds mill.

General used in manufacturing and packing industry. We are welcome for custom made. Please contact us for your better system.

Size 8”, C-C 7 m.

Manufacturing and supply the conveyor roller’s for general application. We welcome for the custom size.

D300 mm. Length 11 m.

W=500 mm, L = 12,800 mm. Operate in paper industry.

Rotary valve size 6 Inch (150A) model WSV150

Belt width = 500 mm. Length = 3 m. Loading port height = 500 mm. Unloading port adjustable height = 1,100~1,500 mm. Full load on conveyor = 50 kg.

Manufacturing and supply the conveyor roller’s for general application. We welcome for the custom size.

Size M12 M16 ½” 5/8”. We welcome for the custom size.

Stainless steel roller conveyor can use in food industry. Can choice our product for light load or heavy duty. A drive unit can select in option.

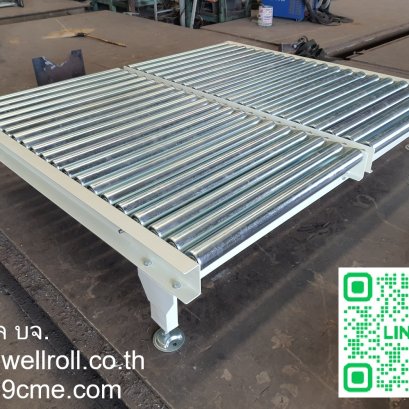

We are design and supply roller conveyor. Please contact us for your better system.

Test to find the best inclination angle for a pallet load 1 tons.
