Screw conveyor

Attribute:

Screw conveyor is equipped with easy handling. Suitable for use in transporting bulk material such as palm seed, grain, dry sand, cement or PVC seeds, etc. for applications in other areas such as transport molasses. (Like a cake) is possible under the appropriate design.

ใหม่

ใหม่

Brand : WELLROLL

Share

>>Gallery

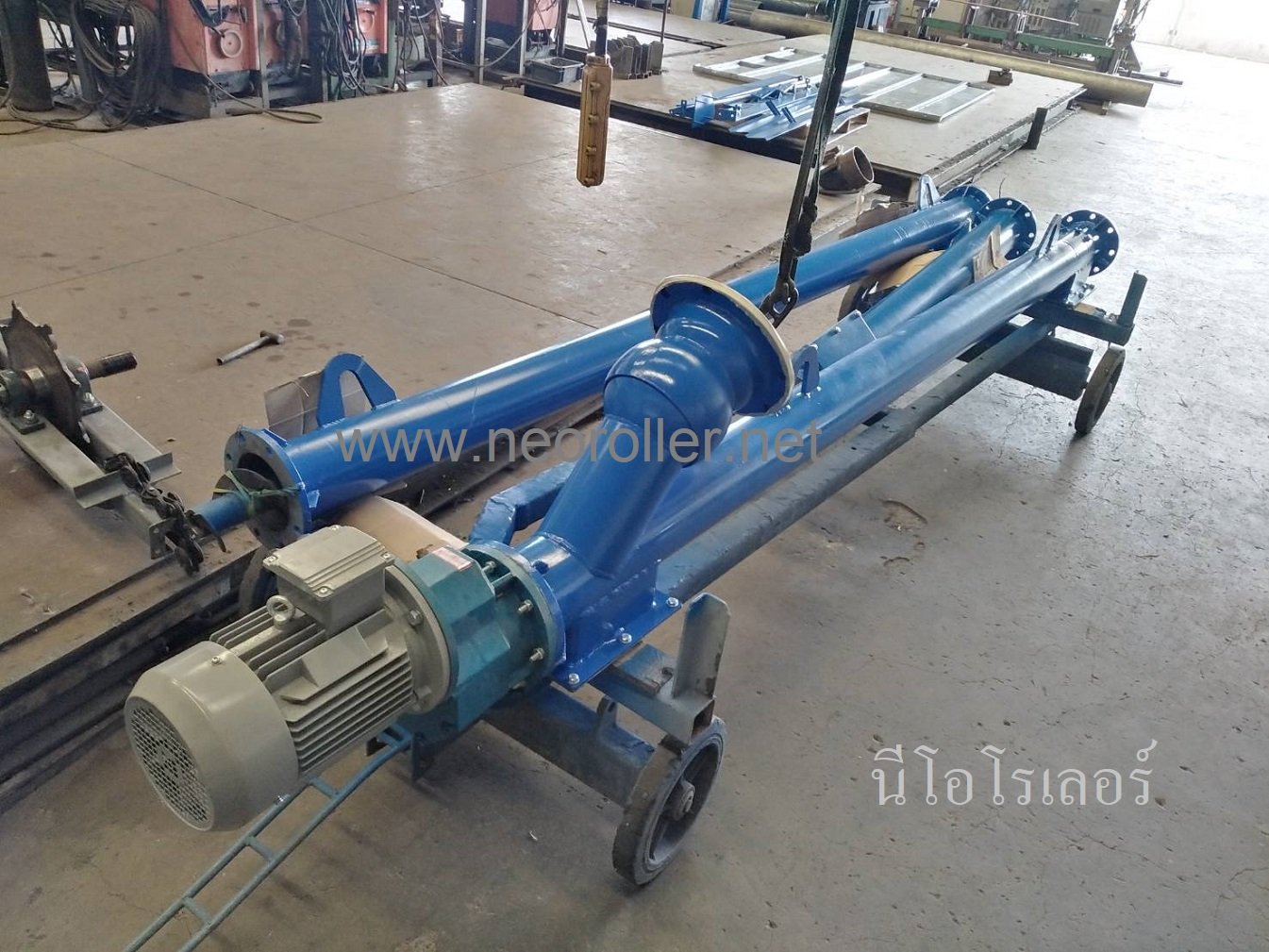

Screw Conveyor

Screw conveyor is equipped with easy handling. Suitable for use in transporting bulk material such as palm seed, grain, dry sand, cement or PVC seeds, etc. for applications in other areas such as transport molasses. (Like a cake) is possible under the appropriate design.

The screw conveyor has some limitations. This must be considered before opting for such limits on the handling length. Crushing of the conveyed materials. High wear of the screw blade and casing.  Limitations on the handling in incline.  However, some materials can be conveyed well by the screw conveyor, horizontal, inclined or vertical. Hanger bearings can be applied to increase the distance to handling of screw conveyor.  But it may resulted to the operation and maintenance cost.

The advantages of screw conveyor for handling material such as dust or moisture control inside a screw conveyor to emanate outward easily. Using a screw conveyor in some cases significantly lower maintenance. Compact, can use with limited installation space.
- Can apply to work with the multi-point to inlet and outlet.
- Can be used to control the flow of materials in some cases.
- Can select the type of blade and paddle to use as a mixer during it conveying.
- Additional water jacket to transfer heat or cool to the material during convying.
